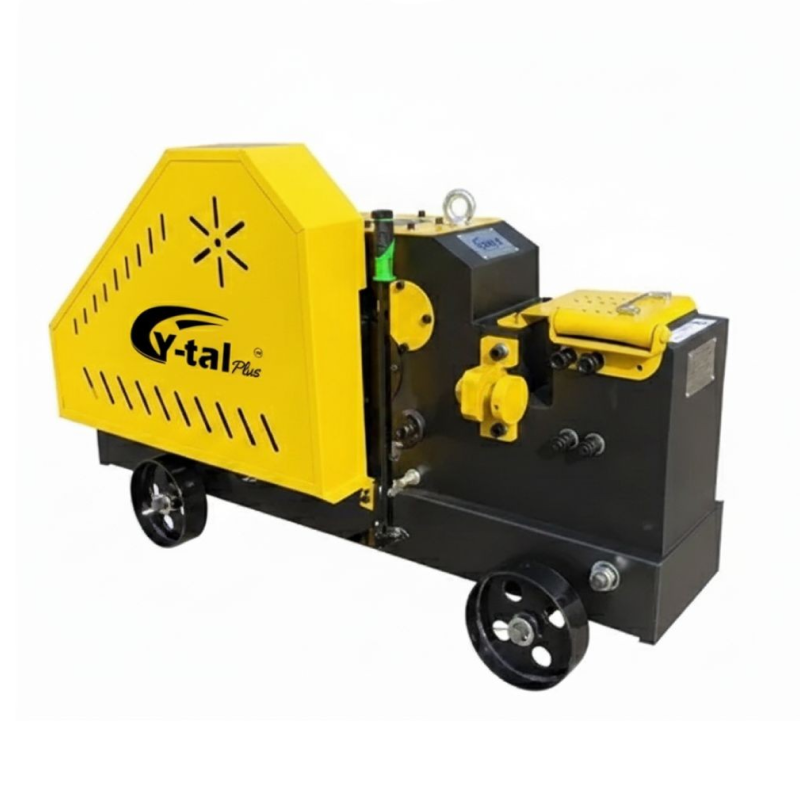

GQ50

The GQ50 bar cutting machine is a heavy-duty, industrial-grade cutter designed for reliable performance across various steel profiles, including TMT bars, round steel, flat, angle, and square sections. Its reinforced cast-iron body and splash lubrication system ensure durability and long continuous operation with minimal upkeep. Designed for job-site convenience, it features a compact, wheeled structure for easy movement, along with safety elements like clutch controls, power protection, and an emergency stop. Rolling-bearing technology further reduces resistance, improving efficiency and saving power.

Any queries? Let's chat

Description

SPECIFICATIONS

Cutting Capacity (Round Steel)
6mm to 50mm diameter
Cutting Capacity (TMT/Reinforced)
6mm to 40mm or 42mm diameter (up to 500Fe)
Motor Power
4 KW
Voltage
415V (3-phase)
Motor Speed
2800 – 2880 RPM
Cutting Frequency/Speed
28 – 32 cuts per minute
Weight
480 kg
Dimensions (L x W x H)
1400 x 550 x 850 mm
Blade Size
90 x 90 x 26 mm
